Weight	2316 kg
Dimensions	1600 × 1600 × 900 mm
Nominal cross section conductor	50mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	2177kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	No
Nominal voltage U	1kV
Colour outer sheath	Black
Shape of conductor	Sector-shaped
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 2 = stranded
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-35°C
Number of pilot/reduced conductors	0
Nominal voltage U0	0.6kV
Number of cores	4
Concentric conductor	None
Max. conductor temperature	70°C
Outer diameter approx.	26.6mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	319mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	NKT
SKU	829020
EAN	8591462129139

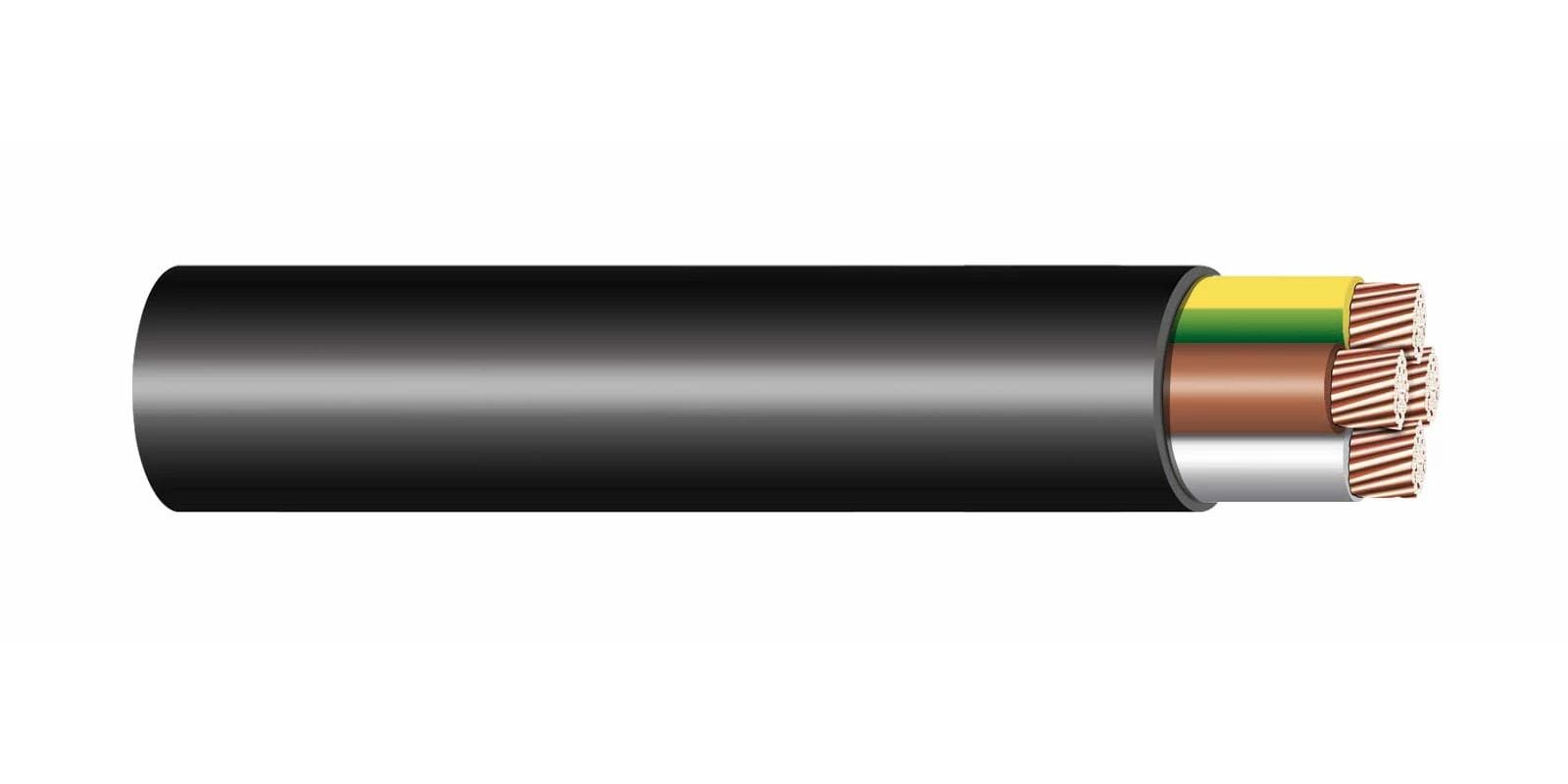

YKY 4X 50.0 SM BLACK EARTH CABLE CU WIRE 0.6/1KV SECTOR DRUM CL.2
