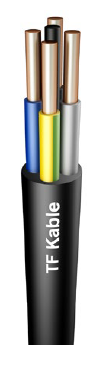

YKY 5X 1.5 ŻO RE BLACK EARTH CABLE CU WIRE 0.6/1KV REEL CL.1

Name: YKY 5X 1.5 ŻO RE BLACK EARTH CABLE CU WIRE 0.6/1KV REEL CL.1
Brand: TELE-FONIKA KABLE
SKU: 004235
Availability: InStock

1452,67 € VAT incl.

VAT incl. (21%)

Part No: G-103095

Brand: TELE-FONIKA KABLE

Delivery time 3-5 working days.

For your home.

Fast support.

Description

01035/I KABEL YKY 5X1.5 ŻO G-003095 M

Additional information

Weight	203 kg
Dimensions	600 × 600 × 150 mm
Nominal cross section conductor	1.5mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	1kV
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Permitted cable outer temperature during assembling/handling	0°C
Permitted cable outer temperature after assembling without vibration	-30°C
Number of pilot/reduced conductors	0
Nominal voltage U0	0.6kV
Number of cores	5
Nominal cross section concentric conductor	0mm2
Concentric conductor	None
Max. conductor temperature	70°C
Outer diameter approx.	11.1mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	126mm
Specification core insulation	Other
Specification material outer sheath	Other
Brand	TELE-FONIKA KABLE
SKU	004235
EAN	5907802001127
