Nominal cross section conductor	16mm2
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	1112kg/km
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	No
Nominal voltage U	1kV
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Permitted cable outer temperature during assembling/handling	-5°C
Permitted cable outer temperature after assembling without vibration	-35°C
Number of pilot/reduced conductors	0
Nominal voltage U0	0.6kV
Number of cores	5
Concentric conductor	None
Max. conductor temperature	70°C
Outer diameter approx.	21.1mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	253mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Brand	NKT
SKU	772874
EAN	8591462018495

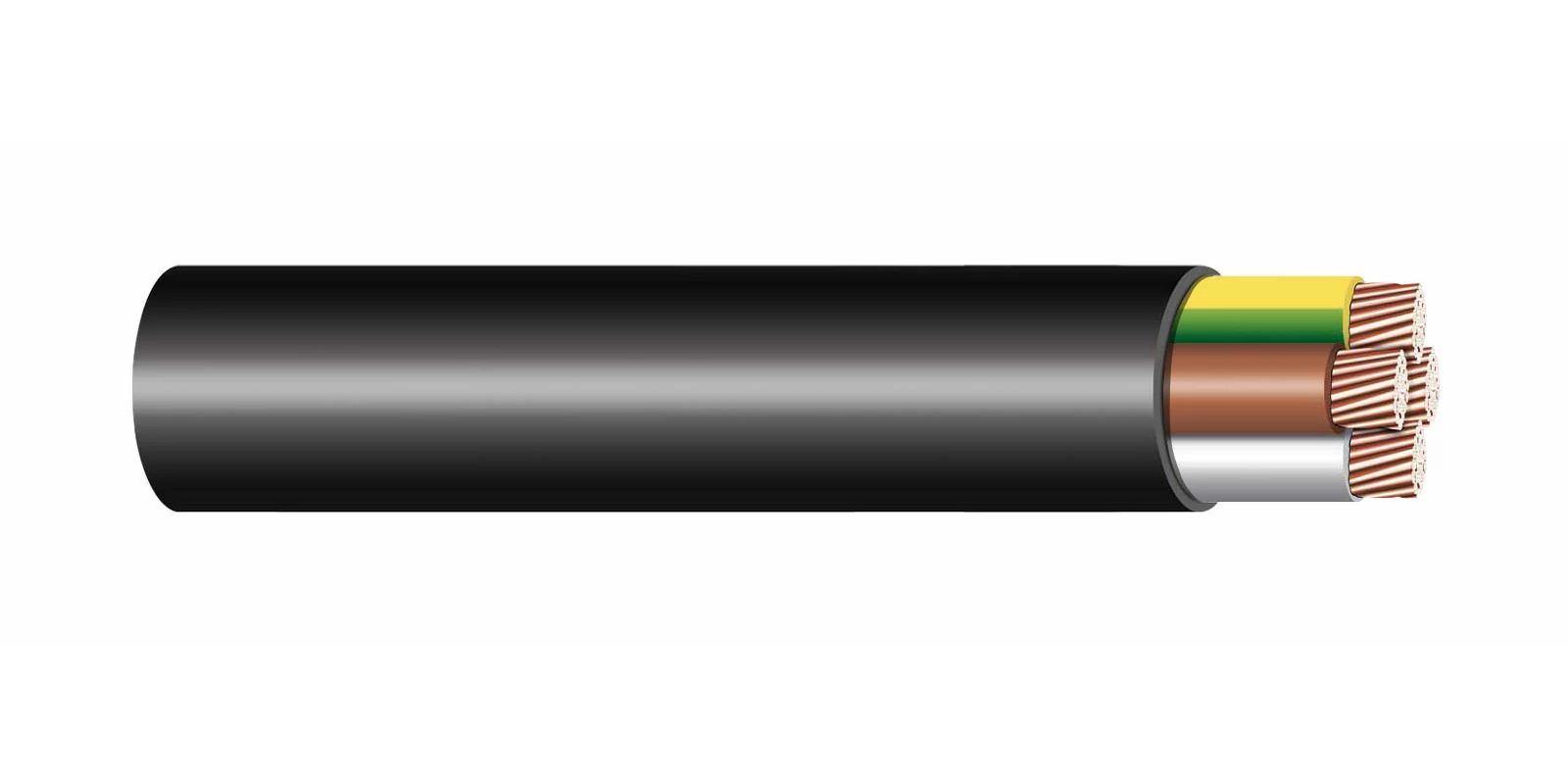

YKY 5X 16.0 ŻO RE BLACK EARTH CABLE CU WIRE 0.6/1KV REEL CL.1
