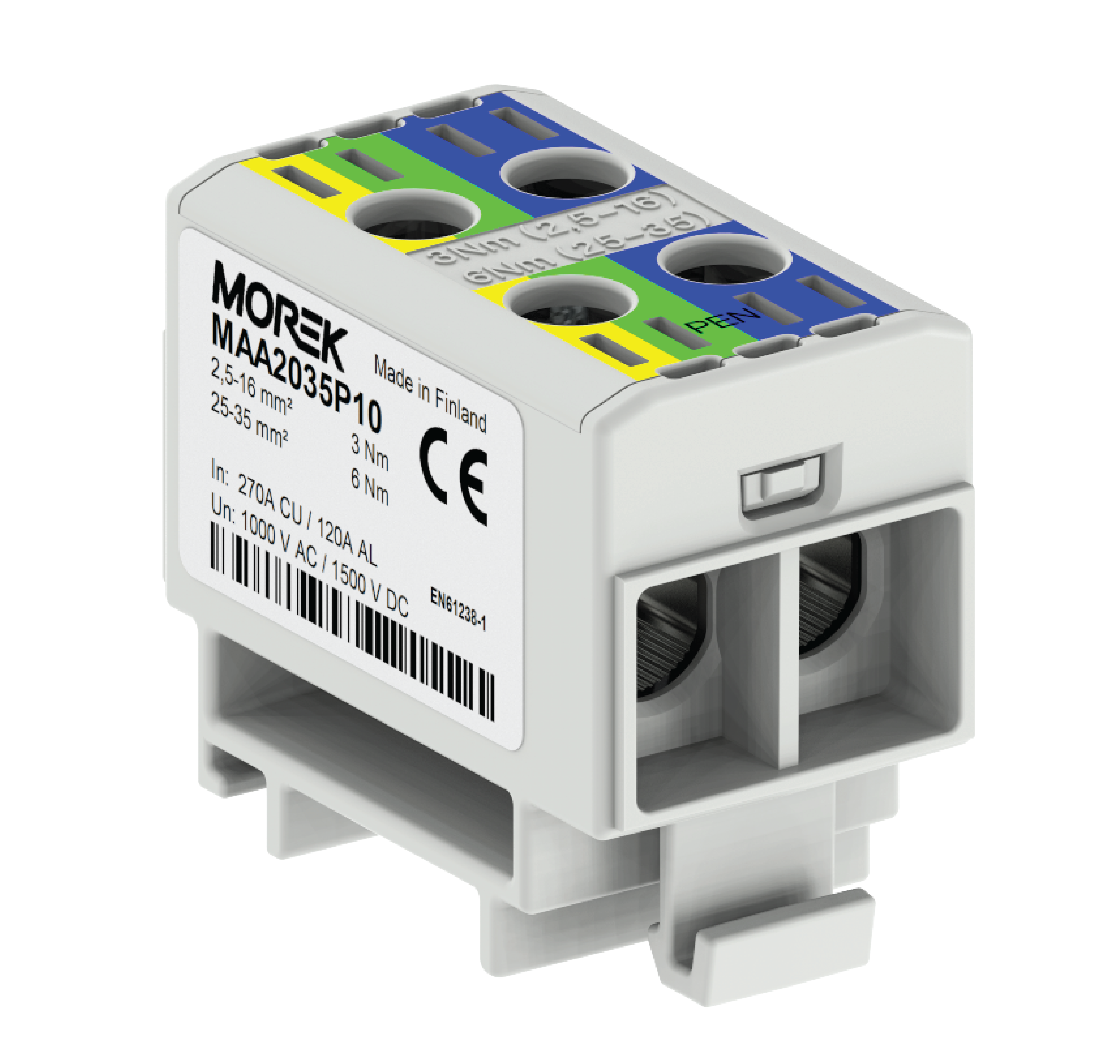

ZŁĄCZE UNIWERSALNE OTL-PEN 35-2 2xAL/CU 2,5-35mm2 MAA2035P10

Name: ZŁĄCZE UNIWERSALNE OTL-PEN 35-2 2xAL/CU 2,5-35mm2 MAA2035P10
Brand: MOREK
SKU: 3152904
Availability: InStock

11,52 € VAT incl.

VAT incl. (21%)

Part No: MAA2035P10

Brand: MOREK

30 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

Feed-through connectors enable direct connection of two cables in one line, without branching. They are characterized by a compact structure and easy installation on a DIN rail. They are ideal for simple, linear connections in control cabinets and switchboards. Used in many types of electrical and industrial installations.

Additional information

Weight	0,12 kg
Dimensions	30 × 30 × 30 mm
Number of levels	1
Number of clamp positions per level	4
Mounting method	DIN rail (top hat rail) 35 mm
Color	Multi-coloured
Material insulation body	Thermoplastic
Type of electrical connection 1	Screw connection
Explosion-tested version 'Ex e'	No
Internally connected stages	Yes
Closing plate required	No
Operating temperature	-25°C
Rated voltage	1500V
Connectable conductor cross section fine-strand with cable end sleeve	2.5mm2
Connectable conductor cross section fine-strand without cable end sleeve	2.5mm2
Connectable conductor cross section multi-wired	2.5mm2
Rated current In	270A
Brand	MOREK
SKU	3152904
EAN	4744397042200
