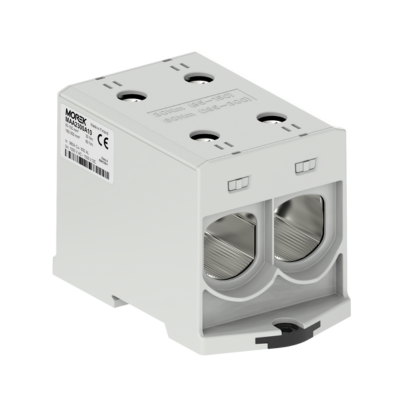

ZŁĄCZKA OTL 300-2 SZARA 2XAL/CU 95-300MM2 1000V AC/1500V DC ZACISK UNIWERSALNY
55,27 € VAT incl.
- VAT excl.
45,68 € VAT excl.
VAT incl. (21%)
Part No:
MAA2300A10
Brand:
MOREK
3 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
Feed-through connectors enable direct connection of two cables in one line, without branching. They are characterized by a compact structure and easy installation on a DIN rail. They are ideal for simple, linear connections in control cabinets and switchboards. Used in many types of electrical and industrial installations.
Additional information
| Weight | 0,4 kg |
|---|---|
| Dimensions | 50 × 50 × 40 mm |
| Number of levels |
1 |
| Number of clamp positions per level |
4 |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Color |
Grey |
| Material insulation body |
Thermoplastic |
| Type of electrical connection 1 |
Screw connection |
| Explosion-tested version 'Ex e' |
No |
| Internally connected stages |
Yes |
| Closing plate required |
No |
| Operating temperature |
-25°C |
| Rated voltage |
1500V |
| Connectable conductor cross section fine-strand with cable end sleeve |
95mm2 |
| Connectable conductor cross section fine-strand without cable end sleeve |
95mm2 |
| Connectable conductor cross section multi-wired |
95mm2 |
| Rated current In |
490A |
| Brand | |
| SKU | 3166257 |
| EAN | 4744397042149 |
