New

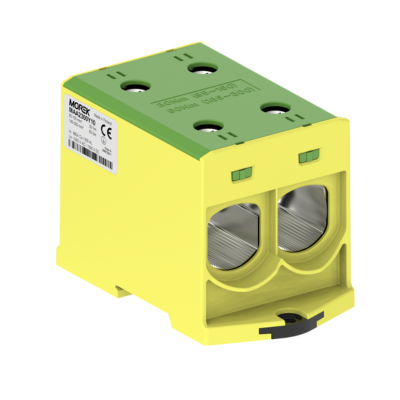

ZŁĄCZKA OTL 300-2 ŻÓŁTO-ZIELONY 2XAL/CU 95-300MM2 1000V AC/1500V DC ZACISK UNIWERSALNY
55,27 € VAT incl.
- VAT excl.
45,68 € VAT excl.
VAT incl. (21%)
Part No:
MAA2300Y10
Brand:
MOREK
3 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
Protective rail connectors are used to connect protective (PE) and grounding conductors in electrical installations. They ensure safe discharge of short-circuit currents to earth. They are mounted directly on a metal rail with which they create a conductive connection. They are an essential element of every switchgear.
Additional information
| Weight | 0,5 kg |
|---|---|
| Dimensions | 80 × 80 × 80 mm |
| Number of levels |
1 |
| Number of clamp positions per level |
4 |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Color |
Green/yellow |
| Material insulation body |
Thermoplastic |
| Type of electrical connection 1 |
Screw connection |
| Explosion-tested version 'Ex e' |
No |
| Internally connected stages |
Yes |
| Closing plate required |
No |
| Operating temperature |
-25°C |
| Rated voltage |
1500V |
| Connectable conductor cross section fine-strand with cable end sleeve |
95mm2 |
| Connectable conductor cross section fine-strand without cable end sleeve |
95mm2 |
| Connectable conductor cross section multi-wired |
95mm2 |
| Rated current In |
490A |
| Brand | |
| SKU | 3166669 |
| EAN | 4744397042163 |
