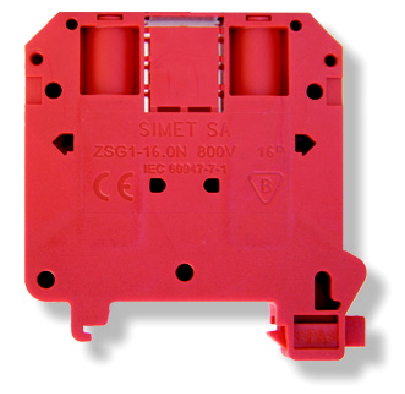

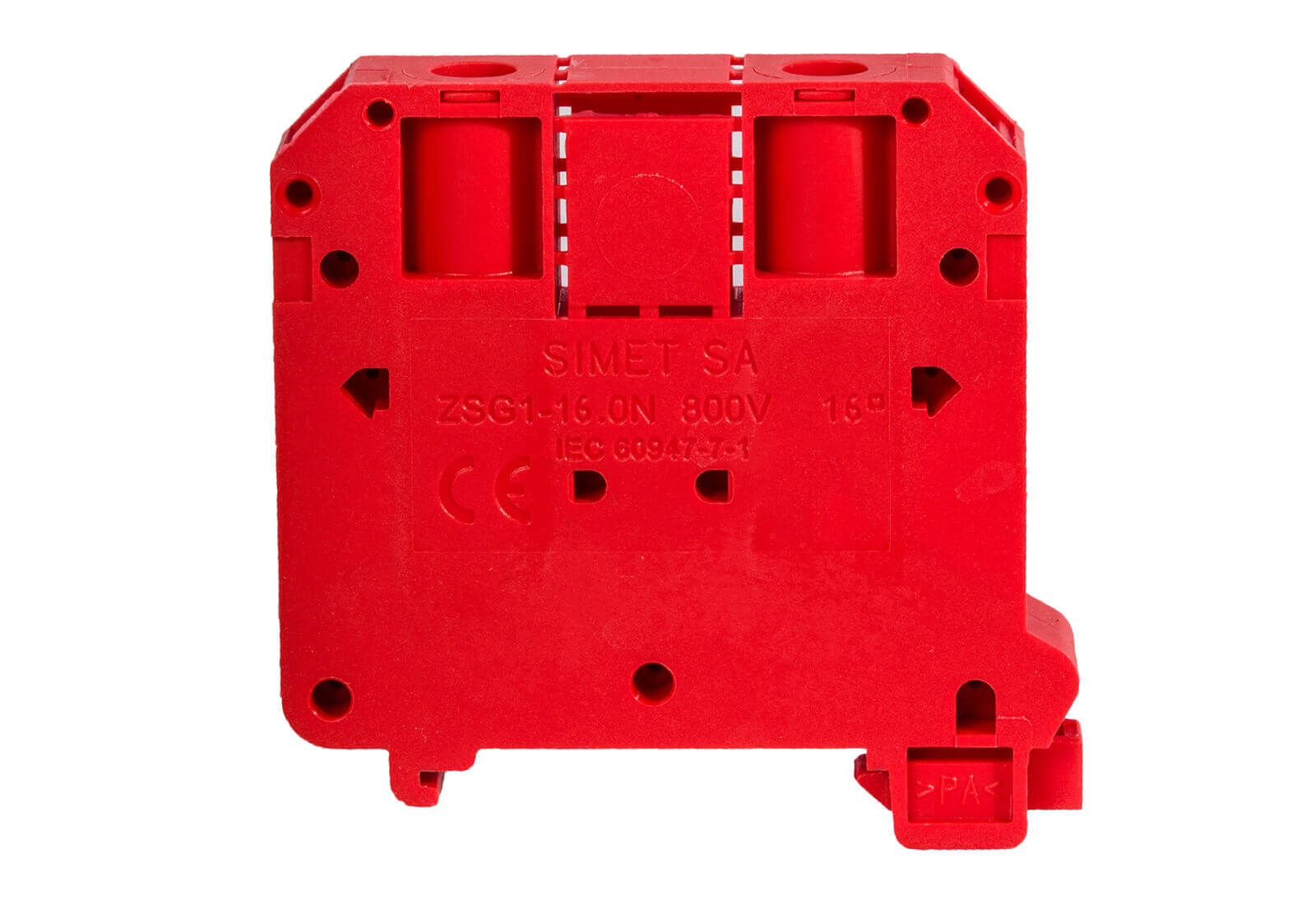

ZSG1 16.0NC THREADED THROUGH RAIL CONNECTOR RED NEW SERIES

Name: ZSG1 16.0NC THREADED THROUGH RAIL CONNECTOR RED NEW SERIES
Brand: SIMET
SKU: 153623
Availability: InStock

3,96 € VAT incl.

VAT incl. (21%)

Part No: 11621311

Brand: SIMET

2 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

Złączka szynowa gwintowa, seria NOWA, 16,0 mm2, TS 35, 1 tor_czerwony_ZSG1-16.0Nc

Additional information

Weight	0,0336 kg
Dimensions	25 × 13,5 × 6,5 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Red
Rated voltage	800V
Operating temperature	-25°C
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	2.5mm2
Connectable conductor cross section fine-strand with cable end sleeve	0mm2
Connectable conductor cross section fine-strand without cable end sleeve	2.5mm2
Connectable conductor cross section multi-wired	0mm2
Material insulation body	Thermoplastic
Rated current In	76A
Brand	SIMET
SKU	153623
EAN	5907813212727
