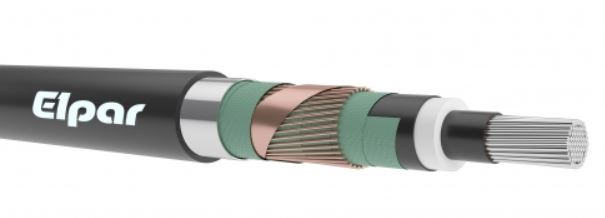

CABLE XRUHAKXS 12/20KV 1X240 RMC /25 MM2

Name: CABLE XRUHAKXS 12/20KV 1X240 RMC /25 MM2
Brand: ELPAR
SKU: 3083183
Availability: InStock

18658,50 € VAT incl.

VAT incl. (21%)

Part No: XRUHAKXS-1X240-RMC/25-20KV

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Nominal cross section conductor	240mm2
Core identification	None
Weight	1755kg/km
Lead sheath	No
Drain wire	Yes
Nominal voltage U	20kV
Shape of conductor	Round
Conductor material	Aluminium
Material outer sheath	Polyolefin
Conductor category	Class 2 = stranded
Laminated sheath	Yes
Fibre optic elements	No
Nominal cross section pilot/reduced conductors	25mm2
Number of pilot/reduced conductors	1
Inner semi-conducting layer	No
Outer semi-conducting layer	No
Longitudinal water blocking screen	Yes
Nominal voltage U0	12kV
Screen	Yes
Number of cores	1
Longitudinal water blocking conductors	Yes
Nominal cross section concentric conductor	25mm2
Concentric conductor	Copper
Outer diameter approx.	30.3mm
With protective conductor	No
Conductive coating	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Fca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	600mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Polyethylene (PE)
Cable geometry	Round
Suitable as medium-voltage cable	Yes
Brand	ELPAR
SKU	3083183
EAN	5901854440163
