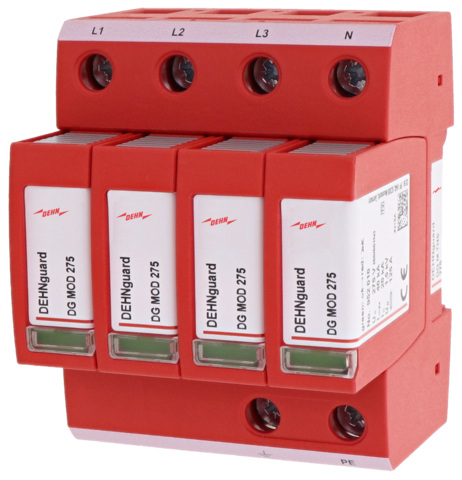

DEHNGUARD MODULAR DG M SURGE ARRESTER T2 C 4P 4M 20/40KA 1.5KV TNS 275
104,76 € VAT incl.
- VAT excl.
86,58 € VAT excl.
VAT incl. (21%)
Part No:
952400
Brand:
DEHN
4 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 0,445 kg |
|---|---|
| Dimensions | 100 × 75 × 80 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| With remote signalling contact |
No |
| Number of conductors (without earthing) |
4 |
| Construction size |
4 modular spacing |
| Voltage protection level |
1.5kV |
| Max. continuous voltage AC |
275V |
| Nominal discharge surge current (8/20) |
20kA |
| Nominal voltage AC |
230V |
| Signalling at the device |
Optical |
| Degree of protection (IP) |
IP20 |
| Voltage protection level N-PE |
1.5kV |
| Max. conductor cross section solid (solid, stranded) |
35mm2 |
| Max. conductor cross section flexible (fine-strand) |
25mm2 |
| Max. discharge surge current (8/20) |
40kA |
| Short-circuit breaking capacity (Isccr) |
50kA |
| Max. overcurrent protection device, parallel connection (fuse) |
125A |
| Max. overcurrent protection device, series connection (fuse) |
100A |
| Brand | |
| SKU | 055808 |
| EAN | 4013364108455 |
