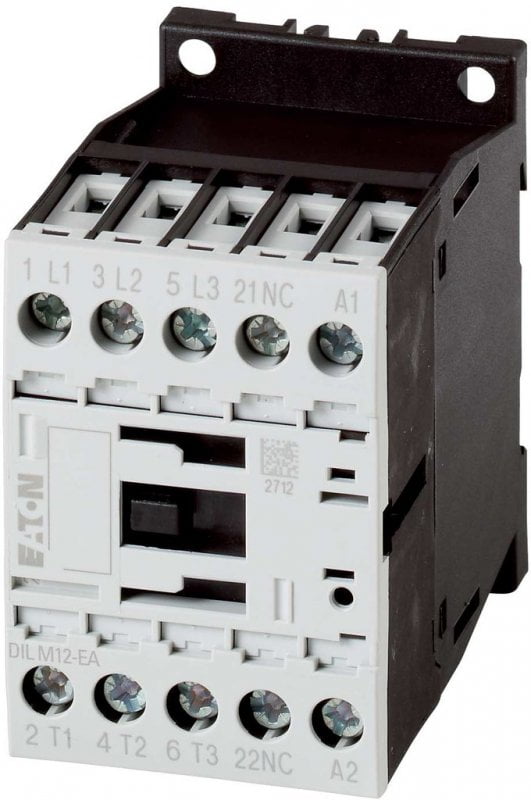

DILM 12-10-EA 12A 3Z 1Z POWER CONTACTOR 12A 3Z 1Z 5.5KW 230V AC SCREW TERMINALS

Name: DILM 12-10-EA 12A 3Z 1Z POWER CONTACTOR 12A 3Z 1Z 5.5KW 230V AC SCREW TERMINALS
Brand: EATON
SKU: 710083
Availability: InStock

25,83 € VAT incl.

VAT incl. (21%)

RRP price: 51,38 €

Part No: 190033

Brand: EATON

109 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

DILM12-10-EA(230V50HZ,240V60HZ) STYCZNIK,5,5KW/400V,STEROWANIE 230VAC

Additional information

Weight	0,25 kg
Dimensions	77 × 68 × 45 mm
Rated operation power at AC-3, 400 V	5.5kW
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-3, 400 V	12A
Rated operation current Ie at AC-1, 400 V	22A
Rated control supply voltage AC 50 Hz	230V
Rated control supply voltage AC 60 Hz	240V
Rated control supply voltage DC	0V
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Rated operation current Ie at AC-4, 400 V	7A
Rated operation power at AC-4, 400 V	3kW
Rated operation power NEMA	7.4kW
Brand	EATON
SKU	710083
EAN	4015081880294
