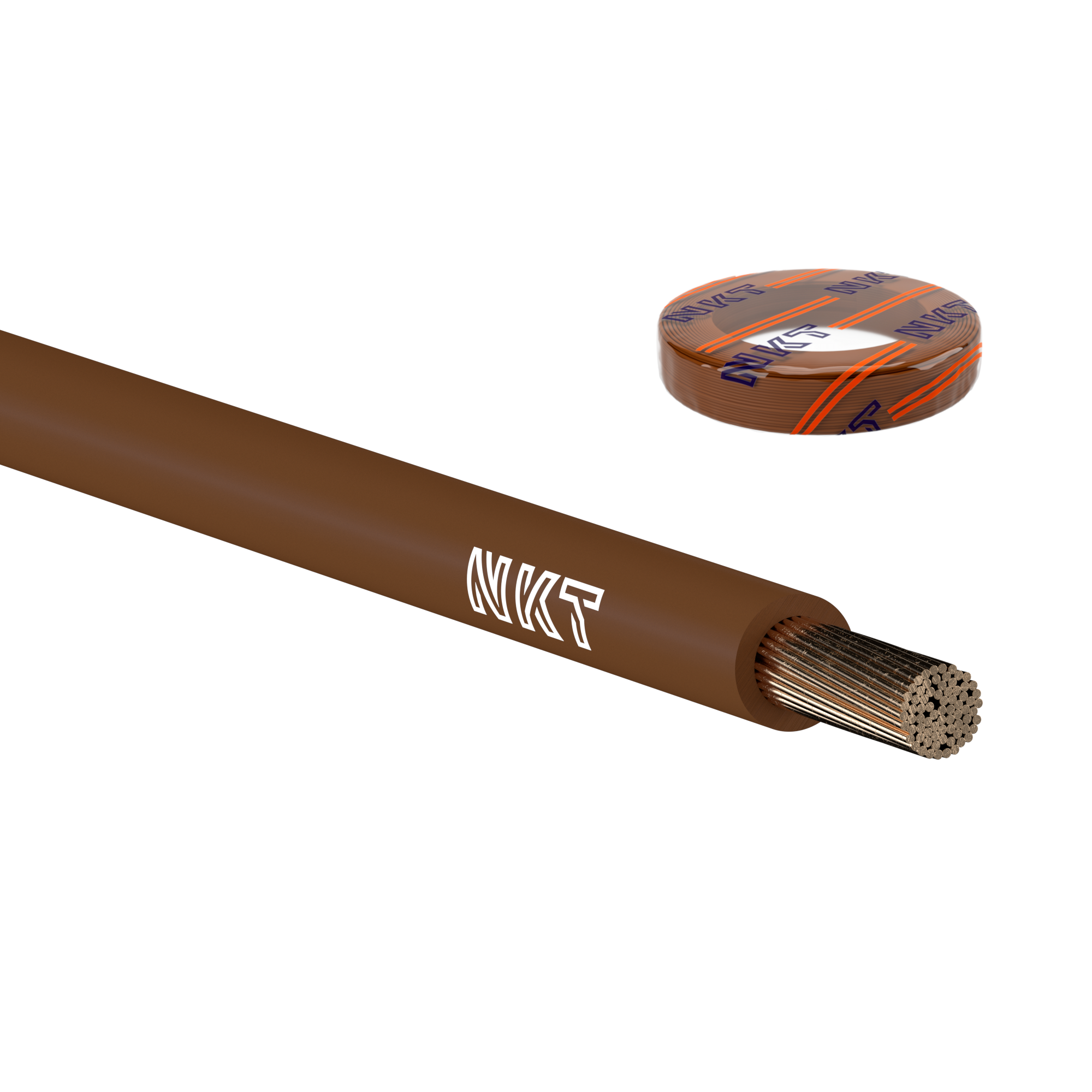

H07V-K LGY 6 BRĄZOWY PRZEWÓD JEDNOŻYŁOWY LINKA GIĘTKA 450/750V KL.5

1474,95 € VAT incl.

VAT incl. (21%)

Part No: 160001054C0100

Brand: NKT

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Description

Flexible cables for installation in pipes and switchboards. Designed for indoor installations, control cabinets, industrial installations and grounding circuits. Available in a wide range of colors for easy identification.

Additional information

Weight	9,54 kg
Dimensions	280 × 280 × 90 mm
Nominal cross section conductor	6mm2
Core insulation material	Polyvinyl chloride (PVC)
Core identification	None
Nominal voltage U	750V
Conductor material	Copper
Conductor category	Class 5 = flexible
Core colour	Brown
Nominal voltage U0	450V
Halogen-free according to IEC 60754-2	No
Maximum allowable core temperature	70°C
Outer diameter approx.	4.6mm
Oil-resistant (according to IEC 60811-404)	No
Low temperature resistant according to EN 60811-504+505+506	Yes
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
AWG size	Other
Identification/coding colour core	Brown
Cable packaging	Puck
Commercial designation	H07V-K LGY
Brand	NKT
SKU	3045362
EAN	5907802047132
