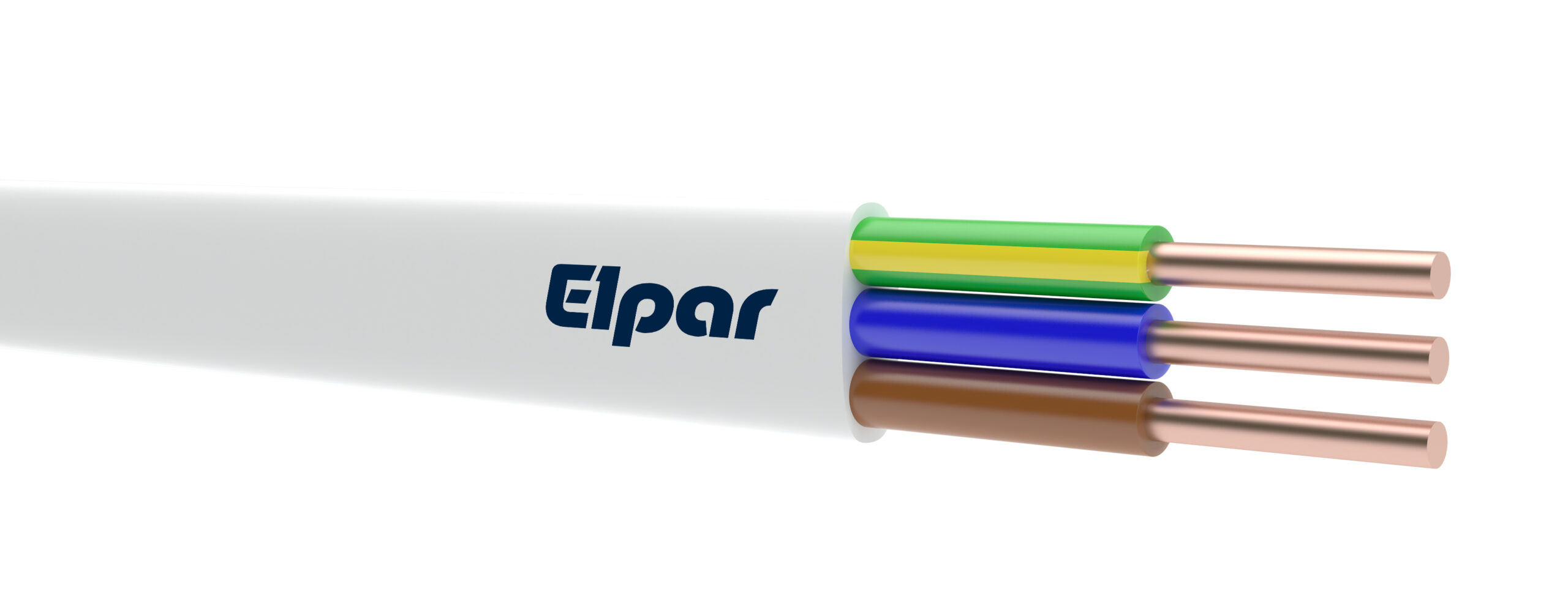

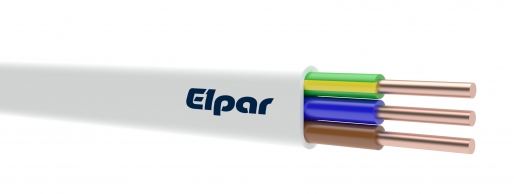

HDHP-J 3X 1.5 HALOGEN-FREE CABLE 450/750V

Name: HDHP-J 3X 1.5 HALOGEN-FREE CABLE 450/750V
Brand: ELPAR
SKU: 889835
Availability: InStock

1558,75 € VAT incl.

VAT incl. (21%)

Part No: HDHP-J7-3X1,5

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	8 kg
Dimensions	400 × 400 × 200 mm
Nominal cross section conductor	1.5mm2
Core identification	Colour
Weight	96kg/km
Drain wire	Yes
Nominal voltage U	750V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyolefin
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Core colour	White
Nominal voltage U0	450V
Screen	No
Number of cores	3
Cable width approx.	10.08mm
Cable height approx.	4.96mm
Protective barrier	None
Low temperature resistant according to EN 60811-504+505+506	No
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Dca
Reaction-to-fire according to EN 13501-6: Smoke production	s1a
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d0
Reaction-to-fire according to EN 13501-6: Acidity	a1
Min. permitted bending radius, stationary application/permanent installation	64.2mm
Specification core insulation	Other
Specification material outer sheath	Other
Twisted cores	No
Cable geometry	Flat
Suitable as installation cable	Yes
Certified for shipboard application	No
Certified as airport lighting cable	No
Brand	ELPAR
SKU	889835
EAN	5901854432441
