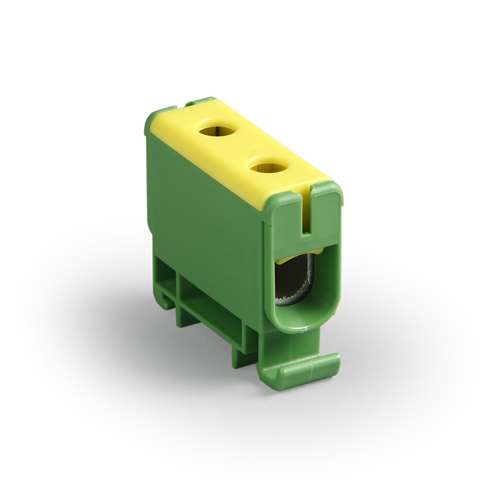

KE 61.3 1-WAY TERMINAL 2,5 – 50 MM2 – YELLOW-GREEN
9,97 € VAT incl.
- VAT excl.
8,24 € VAT excl.
VAT incl. (21%)
Part No:
KE61.3
Brand:
ENSTO BUILDING SYSTEMS
12 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
1 torowy, żółty/zielony, Al 6-50 mm², Cu 2.5-50 mm²
Opis Zaciski uniwersalne Ensto Clampo stosowane są do łączenia przewodów Al/Cu o przekrojach 2.5 – 240 mm². Szeroki zakres zastosowań od tradycyjnych rozdzielnic, automatykę kontrolno-pomiarową, po instalacje budownictwa mieszkaniowego.
Additional information
| Weight | 0,028 kg |
|---|---|
| Dimensions | 50 × 45 × 20 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Color |
Green/yellow |
| Rated voltage |
800V |
| Length |
49mm |
| Operating temperature |
80°C |
| Inflammability class of insulation material according to with UL94 |
V2 |
| Width/grid dimension |
17.8mm |
| Closing plate required |
No |
| Type of electrical connection 1 |
Screw connection |
| Type of electrical connection 2 |
Screw connection |
| Number of levels |
1 |
| Number of clamp positions per level |
2 |
| Internally connected stages |
No |
| Connectable conductor cross section solid-core |
35mm2 |
| Connectable conductor cross section fine-strand with cable end sleeve |
35mm2 |
| Connectable conductor cross section fine-strand without cable end sleeve |
50mm2 |
| Connectable conductor cross section multi-wired |
50mm2 |
| Material insulation body |
Thermoplastic |
| Connection position |
Sideways |
| Rated current In |
160A |
| Explosion-tested version 'Ex e' |
No |
| Brand | |
| SKU | 056630 |
| EAN | 6418677191848 |
