KE 63 ZACISK 1-TOROWY 35 – 150 MM2 – SZARY

Name: KE 63 ZACISK 1-TOROWY 35 - 150 MM2 - SZARY
Brand: ENSTO BUILDING SYSTEMS
SKU: 056629
Availability: InStock

24,83 € VAT incl.

VAT incl. (21%)

Part No: KE63

Brand: ENSTO BUILDING SYSTEMS

2 in stock

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Top product brands.

Description

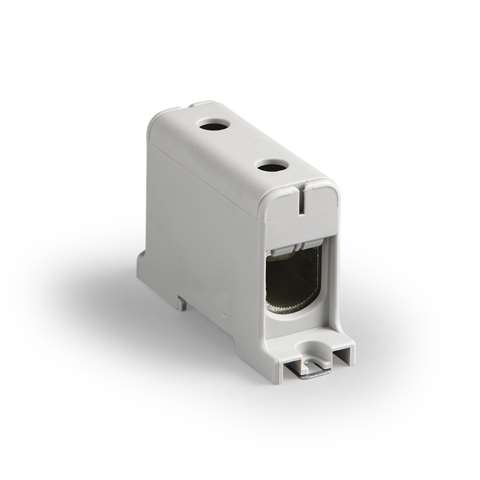

1 torowy, szary, Al/Cu 35-150 mm²

Opis Zaciski uniwersalne Ensto Clampo stosowane są do łączenia przewodów Al/Cu o przekrojach 2.5 – 240 mm². Szeroki zakres zastosowań od tradycyjnych rozdzielnic, automatykę kontrolno-pomiarową, po instalacje budownictwa mieszkaniowego.

Additional information

Weight	0,12 kg
Dimensions	95 × 30 × 60 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Grey
Rated voltage	800V
Length	95mm
Operating temperature	80°C
Inflammability class of insulation material according to with UL94	V2
Width/grid dimension	29.5mm
Closing plate required	No
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	2
Internally connected stages	No
Connectable conductor cross section solid-core	120mm2
Connectable conductor cross section fine-strand with cable end sleeve	120mm2
Connectable conductor cross section fine-strand without cable end sleeve	150mm2
Connectable conductor cross section multi-wired	150mm2
Material insulation body	Thermoplastic
Connection position	Sideways
Rated current In	290A
Explosion-tested version 'Ex e'	No
Brand	ENSTO BUILDING SYSTEMS
SKU	056629
EAN	6418677191886
