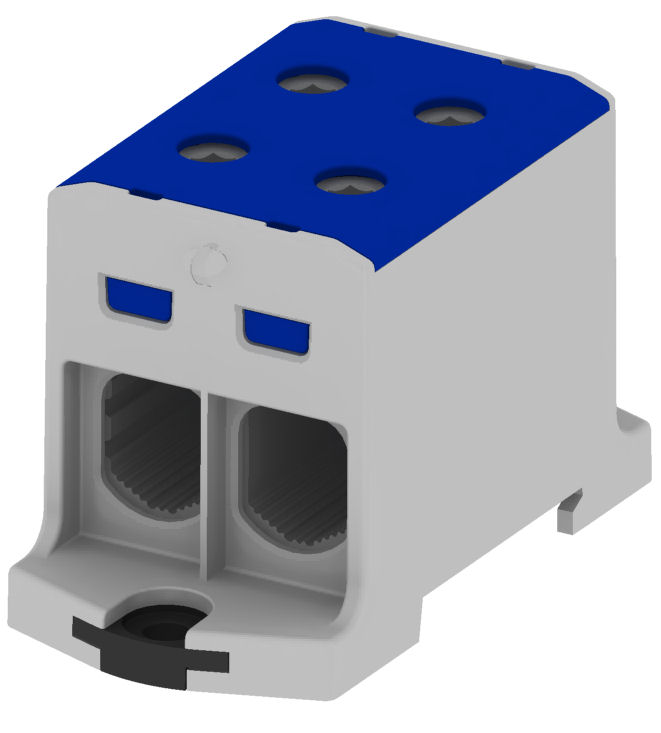

OTL240-2 BLUE 2XAL/CU 35-240MM2 1000V UNIVERSAL TERMINAL
48,41 € VAT incl.
- VAT excl.
40,01 € VAT excl.
VAT incl. (21%)
Part No:
MAA2240B10
Brand:
MOREK
10 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
Złączka szynowa gwintowa rozgałęźna AL, CU, 35-240mm2, TS 35, 1 tor, 4 otw. zaciskowe_niebieski_VC05-0038
Additional information
| Weight | 0,34 kg |
|---|---|
| Dimensions | 106 × 60 × 65 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Color |
Blue |
| Rated voltage |
1500V |
| Length |
106mm |
| Operating temperature |
-25°C |
| Inflammability class of insulation material according to with UL94 |
V0 |
| Width/grid dimension |
37mm |
| Type of electrical connection 1 |
Screw connection |
| Number of levels |
1 |
| Number of clamp positions per level |
4 |
| Connectable conductor cross section fine-strand with cable end sleeve |
35mm2 |
| Connectable conductor cross section fine-strand without cable end sleeve |
35mm2 |
| Connectable conductor cross section multi-wired |
35mm2 |
| Material insulation body |
Thermoplastic |
| Connection position |
Sideways |
| Rated current In |
850A |
| Brand | |
| SKU | 066103 |
| EAN | 4744397014238 |
