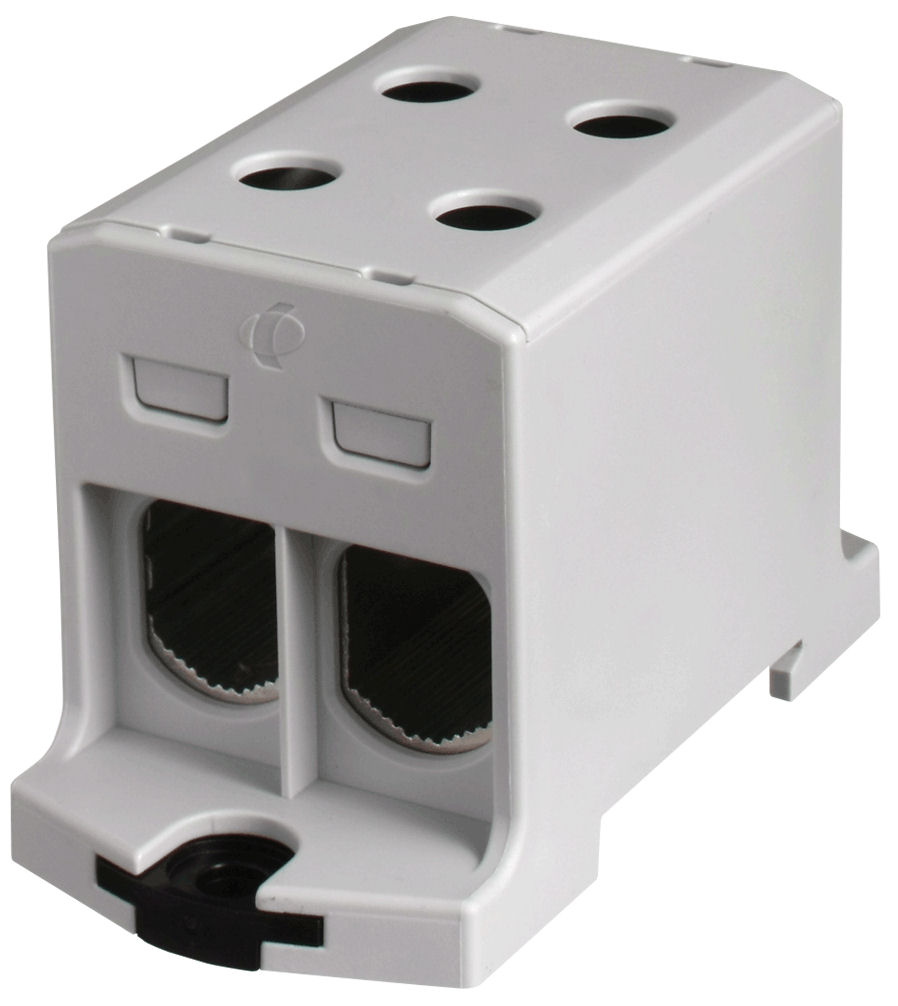

OTL95-2 GREY 2XAL/CU 6-95MM2 1000V UNIVERSAL TERMINAL

Name: OTL95-2 GREY 2XAL/CU 6-95MM2 1000V UNIVERSAL TERMINAL
Brand: MOREK
SKU: 157880
Availability: InStock

15,78 € VAT incl.

VAT incl. (21%)

RRP price: 24,39 €

Part No: MAA2095A10

Brand: MOREK

63 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

Złączka szynowa gwintowa rozgałęźna AL, CU, 6-95mm2, TS 35, 1 tor, 4 otw. zaciskowe_szary_VC05-0042

Additional information

Weight	0,122 kg
Dimensions	83 × 50 × 40 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Grey
Rated voltage	1000V
Length	84mm
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	42mm
Type of electrical connection 1	Screw connection
Number of levels	1
Number of clamp positions per level	4
Connectable conductor cross section fine-strand with cable end sleeve	6mm2
Connectable conductor cross section fine-strand without cable end sleeve	6mm2
Connectable conductor cross section multi-wired	6mm2
Material insulation body	Thermoplastic
Connection position	Sideways
Rated current In	490A
Brand	MOREK
SKU	157880
EAN	4744397014115
