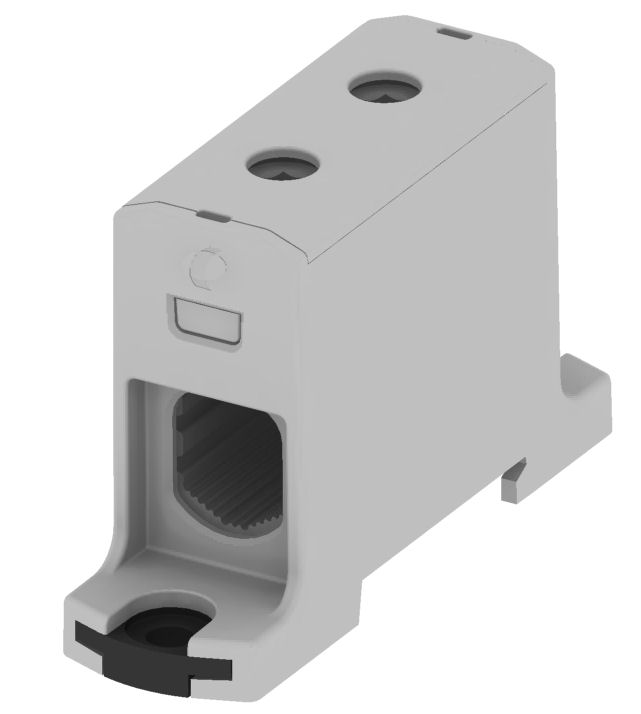

OTL95 GREY 1XAL/CU 6-95MM2 1000V UNIVERSAL TERMINAL

Name: OTL95 GREY 1XAL/CU 6-95MM2 1000V UNIVERSAL TERMINAL
Brand: MOREK
SKU: 124066
Availability: InStock

7,07 € VAT incl.

VAT incl. (21%)

RRP price: 11,37 €

Part No: MAA1095A10

Brand: MOREK

166 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

Złączka szynowa gwintowa AL, CU, 6 – 95mm2, TS 35, 1 tor, 2 otw. zaciskowe_szary_VC05-0019

Additional information

Weight	0,07 kg
Dimensions	83 × 50 × 23 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Grey
Rated voltage	1000V
Length	49mm
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	49mm
Type of electrical connection 1	Screw connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section fine-strand with cable end sleeve	6mm2
Connectable conductor cross section fine-strand without cable end sleeve	6mm2
Connectable conductor cross section multi-wired	6mm2
Material insulation body	Thermoplastic
Connection position	Sideways
Rated current In	245A
Brand	MOREK
SKU	124066
EAN	4744397013866
