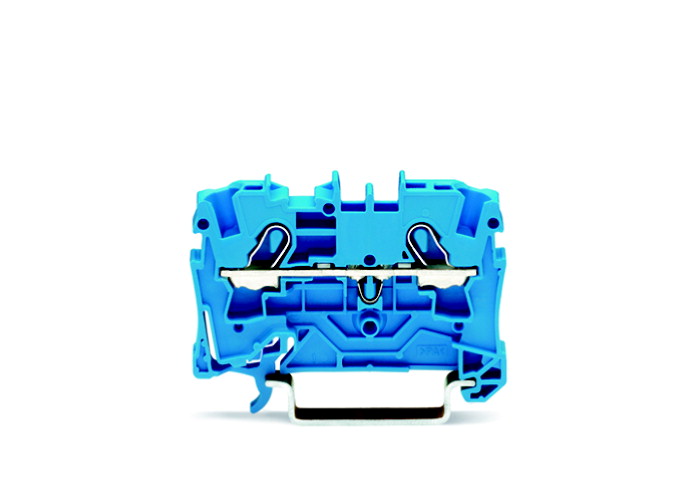

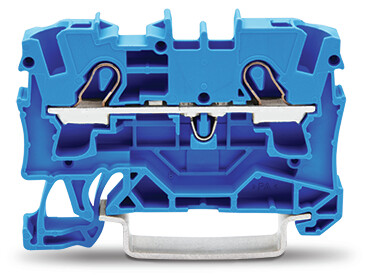

TOPJOBS 2-WIRE CONNECTOR 4 MM2 BLUE

Name: TOPJOBS 2-WIRE CONNECTOR 4 MM2 BLUE
Brand: WAGO
SKU: 508716
Availability: InStock

1,29 € VAT incl.

VAT incl. (21%)

Part No: 2004-1204

Brand: WAGO

169 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,01 kg
Dimensions	51 × 36 × 7 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Blue
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	1.6mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.5mm2
Connectable conductor cross section multi-wired	0.5mm2
Material insulation body	Thermoplastic
Rated current In	32A
Brand	WAGO
SKU	508716
EAN	4017332071086
