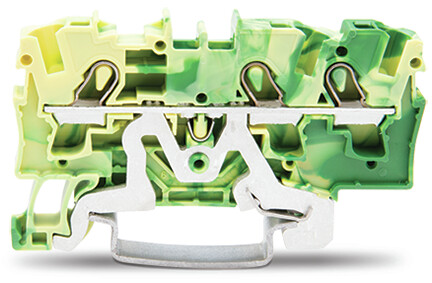

TOPJOBS 4.0 THROUGH CONNECTOR 3-WIRE 4 MM2, ¿O

Name: TOPJOBS 4.0 THROUGH CONNECTOR 3-WIRE 4 MM2, ¿O
Brand: WAGO
SKU: 125888
Availability: InStock

3,91 € VAT incl.

VAT incl. (21%)

Part No: 2004-1307

Brand: WAGO

139 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

TOPJOBS złączka 3-przewodowa 4 mm2 żółto-zielona

Additional information

Weight	0,013 kg
Dimensions	65 × 38 × 7 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Green/yellow
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	3
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.5mm2
Connectable conductor cross section multi-wired	0.5mm2
Material insulation body	Thermoplastic
Rated current In	32A
Brand	WAGO
SKU	125888
EAN	4017332071604
