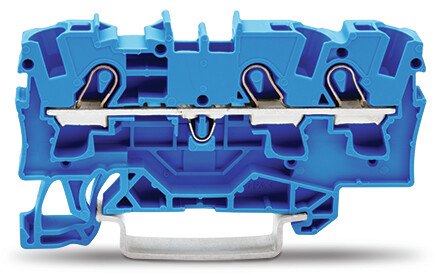

TOPJOBS 4.0 THROUGH CONNECTOR 3-WIRE 4 MM2, BLUE

Name: TOPJOBS 4.0 THROUGH CONNECTOR 3-WIRE 4 MM2, BLUE
Brand: WAGO
SKU: 125887
Availability: InStock

1,65 € VAT incl.

VAT incl. (21%)

Part No: 2004-1304

Brand: WAGO

17 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

TOPJOBS złączka 3-przewodowa 4 mm2 niebieska

Additional information

Weight	0,006 kg
Dimensions	38 × 64 × 6 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Blue
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	3
Connectable conductor cross section solid-core	1.6mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.5mm2
Connectable conductor cross section multi-wired	0.5mm2
Material insulation body	Thermoplastic
Rated current In	32A
Brand	WAGO
SKU	125887
EAN	4017332071550
