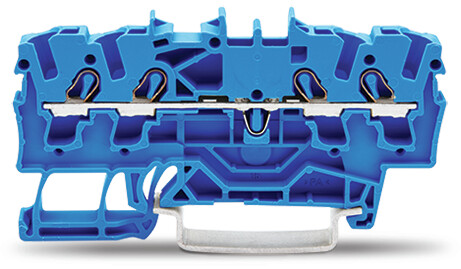

TOPJOBS 4-WIRE CONNECTOR 2.5 MM2 BLUE

Name: TOPJOBS 4-WIRE CONNECTOR 2.5 MM2 BLUE
Brand: WAGO
SKU: 538721
Availability: InStock

1,69 € VAT incl.

VAT incl. (21%)

Part No: 2002-1404

Brand: WAGO

132 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,075 kg
Dimensions	5 × 33 × 70 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Blue
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	4
Connectable conductor cross section solid-core	0.75mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.25mm2
Connectable conductor cross section multi-wired	0.25mm2
Material insulation body	Thermoplastic
Rated current In	24A
Brand	WAGO
SKU	538721
EAN	4017332999304
