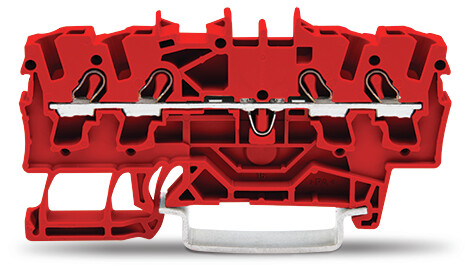

TOPJOBS 4-WIRE CONNECTOR 2.5 MM2 RED

Name: TOPJOBS 4-WIRE CONNECTOR 2.5 MM2 RED
Brand: WAGO
SKU: 538722
Availability: InStock

1,80 € VAT incl.

VAT incl. (21%)

Part No: 2002-1403

Brand: WAGO

3 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,01 kg
Dimensions	70 × 35 × 5 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Red
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	4
Connectable conductor cross section solid-core	0.75mm2
Connectable conductor cross section fine-strand with cable end sleeve	0.75mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.25mm2
Connectable conductor cross section multi-wired	0.25mm2
Material insulation body	Thermoplastic
Rated current In	24A
Brand	WAGO
SKU	538722
EAN	4044918081559
