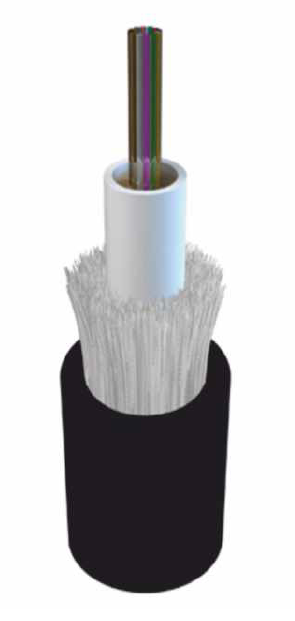

UNIVERSAL FIBER OPTIC CABLE SM 24J, CTC, CPR B2CA

Name: UNIVERSAL FIBER OPTIC CABLE SM 24J, CTC, CPR B2CA
Brand: securityNET
SKU: 3068489
Availability: InStock

securityNET

1223,99 € VAT incl.

VAT incl. (21%)

Part No: 8057 1 024-B2

Brand: securityNET

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Description

They enable data transfer at very high speed and low losses. Perfect for broadband and cable TV. They ensure stability and resistance to interference. It is recommended to install in pipes and channels.

Additional information

Weight	71 kg
Fibre type	Single mode 9/125
Weight	80kg/km
Number of fibres	24
With stress relief	Yes
Color of coating/insulation	Black
Category	OS2
Material outer sheath	Other
Type of tube	Loose tube
Number of fibres per tube	24
Cable metal free	Yes
For underground installations	Yes
Outer diameter approx.	8.2mm
With rodent protection	Yes
Longitudinal water blocking cable	Yes
Radial water blocking cable	No
Reaction-to-fire according to EN 13501-6: Class	B2ca
Reaction-to-fire according to EN 13501-6: Smoke production	s1a
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d1
Reaction-to-fire according to EN 13501-6: Acidity	a1
Min. permitted bending radius, stationary application/permanent installation	164mm
Specification material outer sheath	Polyethylene (PE)
Cable geometry	Round
Max. tensile strength during installation	2kN
Brand	securityNET
SKU	3068489
EAN	5904169103327
