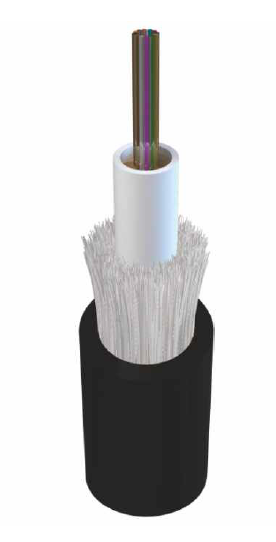

UNIVERSAL FIBRE OPTIC CABLE SM U-DQ(ZN)BH 4J (1X4), ECA 1.3KN

Name: UNIVERSAL FIBRE OPTIC CABLE SM U-DQ(ZN)BH 4J (1X4), ECA 1.3KN
Brand: securityNET
SKU: 3071243
Availability: InStock

securityNET

402,35 € VAT incl.

VAT incl. (21%)

Part No: 8007 5 536-00

Brand: securityNET

Request the product

Add to wishlist

Compare

Delivery

Delivery time 3-5 working days.

50k products

For your home.

Support

Fast support.

Quality

Request the product

Description

They enable data transfer at very high speed and low losses. Perfect for broadband and cable TV. They ensure stability and resistance to interference. It is recommended to install in pipes and channels.

Additional information

Weight	136 kg
Fibre type	Single mode 9/125
Weight	34kg/km
Number of fibres	4
With stress relief	Yes
Color of coating/insulation	Black
Category	OS2
Material outer sheath	Other
Type of tube	Loose tube
Number of fibres per tube	4
Cable metal free	Yes
For underground installations	No
Outer diameter approx.	5.9mm
With rodent protection	Yes
Longitudinal water blocking cable	Yes
Radial water blocking cable	No
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	55mm
Specification material outer sheath	Other
Cable geometry	Round
Max. tensile strength during installation	1.3kN
Brand	securityNET
SKU	3071243
EAN	8713182332945
