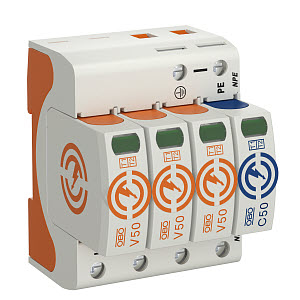

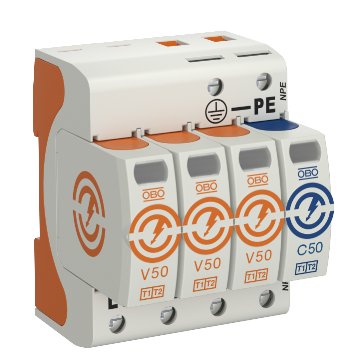

V50-3+NPE-280 SURGE ARRESTER T1+T2 B+C 3P+N 4M 30/50KA 2.5KV
344,18 € VAT incl.
- VAT excl.
284,45 € VAT excl.
VAT incl. (21%)
Part No:
5093526
Brand:
OBO BETTERMANN
50 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
V50-3+NPE-280 OGRANICZNIK KOMBI V50
Additional information
| Weight | 0,67 kg |
|---|---|
| Dimensions | 100 × 75 × 80 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Number of poles |
4 |
| Construction size |
4 modular spacing |
| Voltage protection level |
1.3kV |
| Follow current extinguishing capability |
0.1kA |
| Max. continuous voltage AC |
280V |
| Nominal voltage AC |
230V |
| Test class |
Type 1 + 2 |
| Voltage protection level L-N |
1.3kV |
| Signalling at the device |
Optical |
| Degree of protection (IP) |
IP20 |
| Max. conductor cross section solid (solid, stranded) |
35mm2 |
| Max. conductor cross section flexible (fine-strand) |
35mm2 |
| System configuration DC |
No |
| System configuration IT |
No |
| System configuration TN |
Yes |
| Brand | |
| SKU | 617052 |
| EAN | 4012196159697 |
