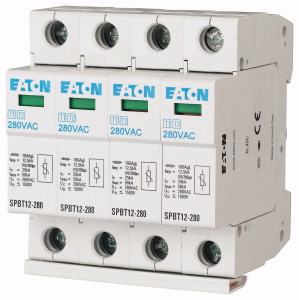

SPBT12-280/4 SURGE ARRESTER T1+T2 B+C 4P 4M 12.5KA 1.5KV TN, TNS
182,19 € VAT incl.
- VAT excl.
150,57 € VAT excl.
VAT incl. (21%)
Part No:
158331
Brand:
EATON
413 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 0,557 kg |
|---|---|
| Dimensions | 70 × 85 × 75 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Number of poles |
4 |
| Construction size |
4 modular spacing |
| Voltage protection level |
1.5kV |
| Exhausting |
No |
| Follow current extinguishing capability |
0kA |
| Max. continuous voltage AC |
280V |
| Nominal voltage AC |
280V |
| Nominal voltage DC |
0V |
| Test class |
Type 1 + 2 |
| Voltage protection level L-N |
0kV |
| Signalling at the device |
Optical |
| Max. continuous voltage DC |
0V |
| Degree of protection (IP) |
IP20 |
| Max. PV-voltage |
0V |
| Voltage protection level N-PE |
0kV |
| Max. conductor cross section solid (solid, stranded) |
25mm2 |
| Max. conductor cross section flexible (fine-strand) |
35mm2 |
| Voltage protection level (DC+ - DC-) |
0kV |
| Voltage protection level (DC+/DC- - PE) |
0kV |
| Specific energy (W/R) |
39.1kJ/Ω |
| Voltage protection level L-PE |
1.5kV |
| Max. overcurrent protection device, parallel connection (fuse) |
0A |
| Max. overcurrent protection device, series connection (fuse) |
160A |
| Brand | |
| SKU | 503594 |
| EAN | 4015081548897 |
