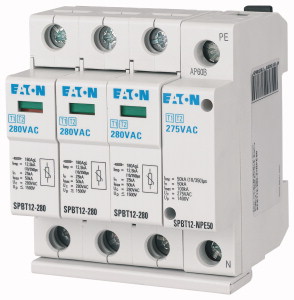

SPBT12-280-3+NPE50 OGRANICZNIK PRZEPIĘĆ T1+T2 B+C 3+NPE 4M 1.5KV IT, TN, TNS, TT

Name: SPBT12-280-3+NPE50 OGRANICZNIK PRZEPIĘĆ T1+T2 B+C 3+NPE 4M 1.5KV IT, TN, TNS, TT
Brand: EATON
SKU: 686235
Availability: InStock

165,46 € VAT incl.

VAT incl. (21%)

Part No: 184750

Brand: EATON

10 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Additional information

Weight	0,551 kg
Dimensions	70 × 90 × 73 mm
Mounting method	DIN rail (top hat rail) 35 mm
Number of poles	4
Construction size	4 modular spacing
Voltage protection level	1.5kV
Follow current extinguishing capability	0kA
Max. continuous voltage AC	260V
Nominal voltage AC	240V
Nominal voltage DC	0V
Test class	Type 1 + 2
Voltage protection level L-N	1.5kV
Signalling at the device	Optical
Max. continuous voltage DC	0V
Degree of protection (IP)	IP20
Max. PV-voltage	0V
Voltage protection level N-PE	1.4kV
Max. conductor cross section solid (solid, stranded)	25mm2
Max. conductor cross section flexible (fine-strand)	35mm2
Voltage protection level (DC+ - DC-)	0kV
Voltage protection level (DC+/DC- - PE)	0kV
Specific energy (W/R)	625kJ/Ω
Voltage protection level L-PE	1.5kV
Max. overcurrent protection device, parallel connection (fuse)	0A
Max. overcurrent protection device, series connection (fuse)	0A
Brand	EATON
SKU	686235
EAN	4015081787869
