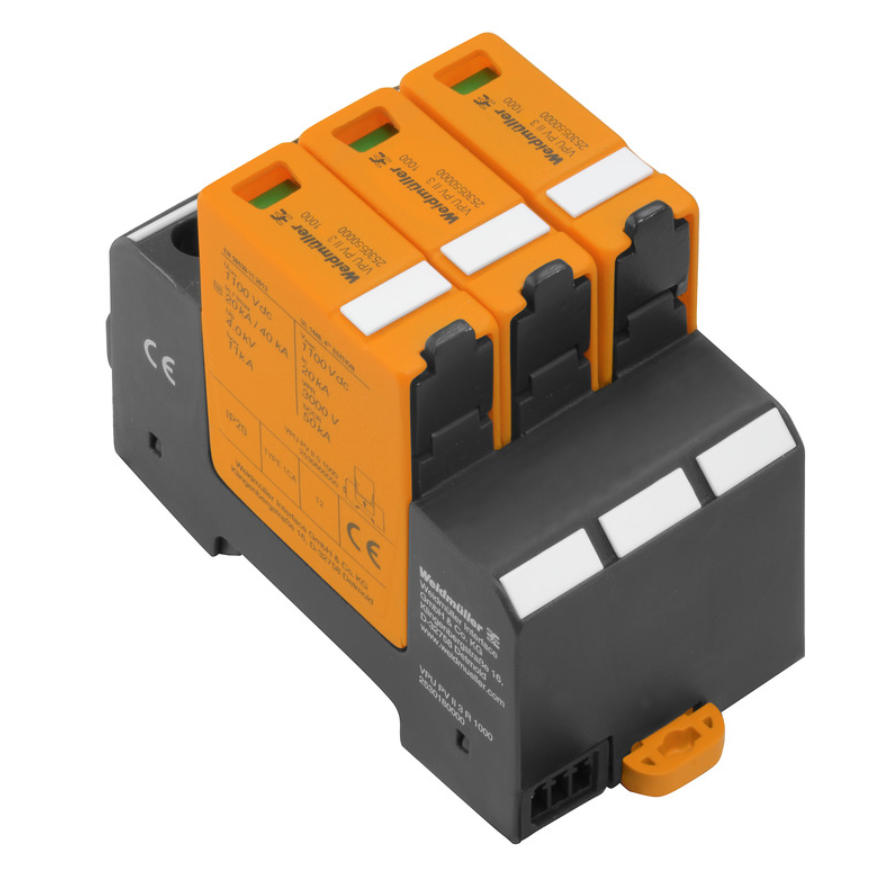

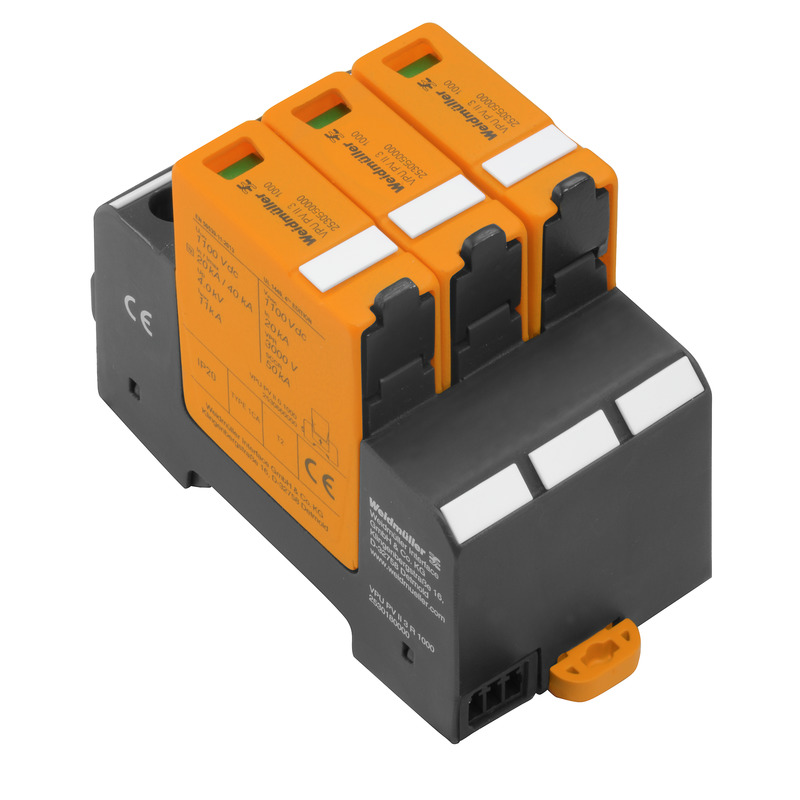

VPU PV II 3 1000 SURGE ARRESTER T2 C 3P 3M 20/50KA 3.8KV 1000V DC PV
81,92 € VAT incl.
- VAT excl.
67,70 € VAT excl.
VAT incl. (21%)
Part No:
2530550000
Brand:
WEIDMULLER
46 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
VPU PV II 3 1000 SURGE ARRESTER T2 C 3P 3M 20/50KA 3.8KV 1000V DC PV
Additional information
| Weight | 0,392 kg |
|---|---|
| Dimensions | 110 × 100 × 65 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| With remote signalling contact |
No |
| Number of conductors (without earthing) |
3 |
| Construction size |
3 modular spacing |
| Voltage protection level |
3.8kV |
| Nominal voltage AC |
0V |
| Nominal voltage DC |
1000V |
| Category type 2 |
Yes |
| Signalling at the device |
Optical |
| Degree of protection (IP) |
IP20 |
| Max. conductor cross section solid (solid, stranded) |
35mm2 |
| Max. conductor cross section flexible (fine-strand) |
25mm2 |
| System configuration DC |
Yes |
| Brand | |
| SKU | 808233 |
| EAN | 4050118540550 |
