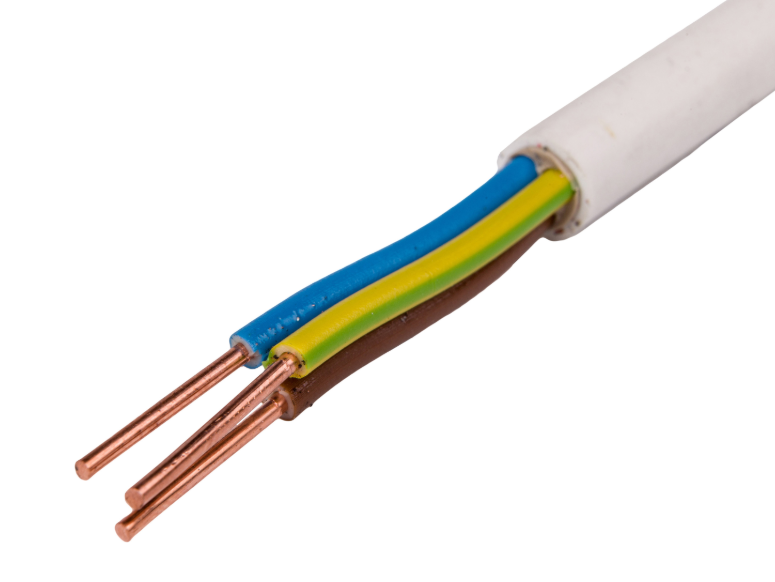

YDY 3X 1.5 ŻO WHITE INSTALLATION CABLE ROUND WIRE 450/750V CL.1 DRUM

Name: YDY 3X 1.5 ŻO WHITE INSTALLATION CABLE ROUND WIRE 450/750V CL.1 DRUM
Brand: ELEKTROKABEL
SKU: 3116616
Availability: OutOfStock

1124,73 € VAT incl.

VAT incl. (21%)

Part No: 5907749704679

Brand: ELEKTROKABEL

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Nominal cross section conductor	1.5mm2
Core identification	Colour
Weight	127kg/km
Lead sheath	No
Drain wire	Yes
Nominal voltage U	750V
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Core colour	White
Nominal voltage U0	450V
Screen	No
Number of cores	3
Protective barrier	None
Outer diameter approx.	8.7mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
AWG size	Other
Min. permitted bending radius, stationary application/permanent installation	35mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Suitable as installation cable	Yes
Brand	ELEKTROKABEL
SKU	3116616
EAN	5907749704679
