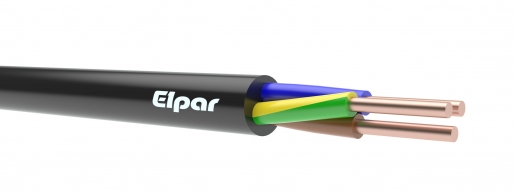

YKXS 1X 70.0 RMC BLACK EARTH CABLE CU WIRE 0.6/1KV CROSS-LINKED THICKENED CL.2

Name: YKXS 1X 70.0 RMC BLACK EARTH CABLE CU WIRE 0.6/1KV CROSS-LINKED THICKENED CL.2
Brand: ELPAR
SKU: 734422
Availability: InStock

18163,77 € VAT incl.

VAT incl. (21%)

Part No: YKXS-1X70-RMC-1KV

Brand: ELPAR

Delivery time 3-5 working days.

For your home.

Fast support.

Additional information

Weight	718 kg
Dimensions	1500 × 1500 × 710 mm
Nominal cross section conductor	70mm2
Material core insulation	Other
Core identification	None
Flame retardant	According to IEC/EN 60332-1-2
Circuit integrity	None
Nominal voltage U	1000V
Colour outer sheath	Black
Shape of conductor	Round
Diameter conductor	14.9mm
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 2 = stranded
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	-5°C
Core colour	Black
Nominal voltage U0	600V
Number of cores	1
Max. conductor temperature	90°C
Protective barrier	None
Outer diameter approx.	14.9mm
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Reaction-to-fire according to EN 13501-6: Smoke production	None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	None
Reaction-to-fire according to EN 13501-6: Acidity	None
Min. permitted bending radius, stationary application/permanent installation	223.5mm
Specification core insulation	Crosslinked polyethylene (XLPE)
Specification material outer sheath	Other
Cable geometry	Round
Brand	ELPAR
SKU	734422
EAN	5901854414645
