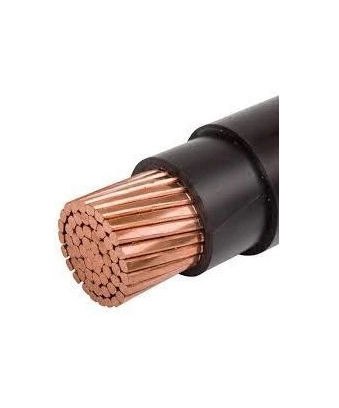

YKXS 1X120.0 RMC BLACK EARTH CABLE CU WIRE 0.6/1KV CROSS-LINKED THICKENED CL.2
26010,78 € VAT incl.
- VAT excl.
21496,51 € VAT excl.
VAT incl. (21%)
Part No:
WCC7001P00CEA0O
Brand:
ELTRIM
2 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 1212 kg |
|---|---|
| Dimensions | 1000 × 1000 × 560 mm |
| Nominal cross section conductor |
120mm2 |
| Core identification |
Colour |
| Weight |
1195kg/km |
| Lead sheath |
No |
| Drain wire |
No |
| Nominal voltage U |
1000V |
| Shape of conductor |
Round |
| Conductor material |
Copper |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Conductor category |
Class 2 = stranded |
| Armouring/reinforcement |
None |
| Number of pilot/reduced conductors |
0 |
| Core colour |
Black |
| Nominal voltage U0 |
600V |
| Screen |
No |
| Number of cores |
1 |
| Protective barrier |
None |
| Outer diameter approx. |
18.2mm |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| Min. permitted bending radius, stationary application/permanent installation |
273mm |
| Specification core insulation |
Crosslinked polyethylene (XLPE) |
| Specification material outer sheath |
Other |
| Cable geometry |
Round |
| Brand | |
| SKU | 3045994 |
| EAN | 95901564054370 |
