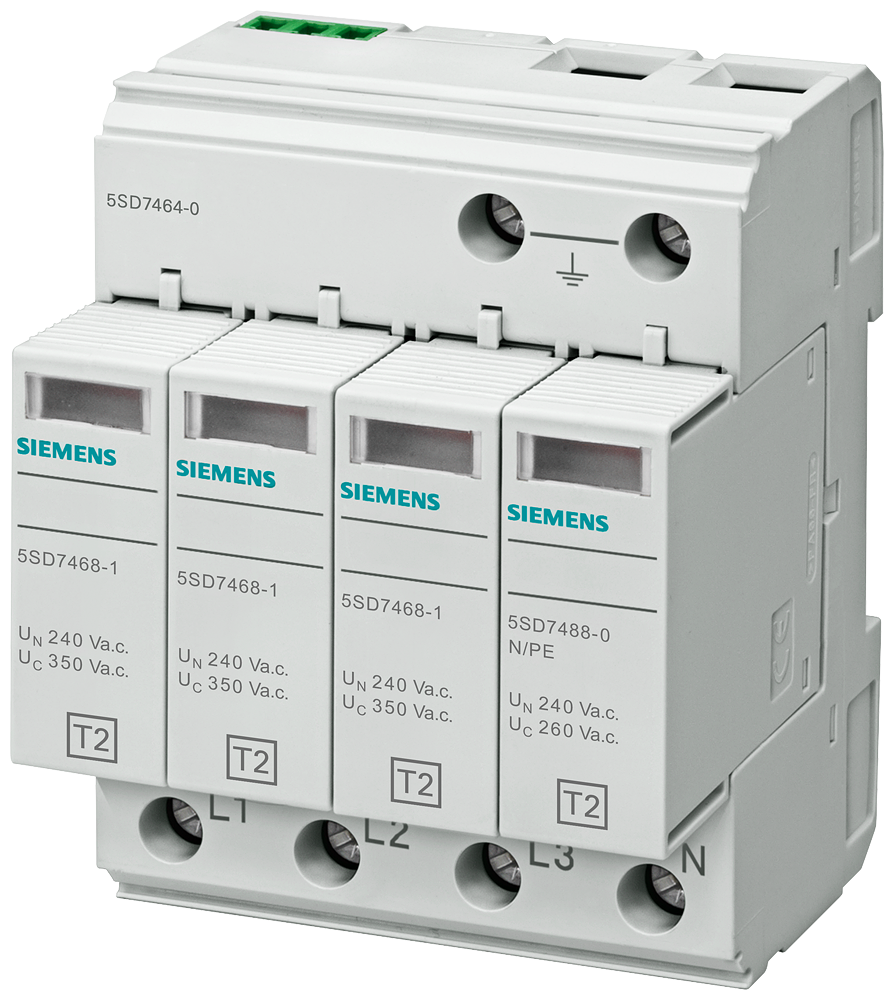

5SD SURGE ARRESTER T2 C 3P+N 4M 20/40KA 1.9KV 350V UC TNS, TT
234,81 € VAT incl.
- VAT excl.
194,06 € VAT excl.
VAT incl. (21%)
Part No:
5SD7464-0
Brand:
SIEMENS
2 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Additional information
| Weight | 0,416 kg |
|---|---|
| Dimensions | 78 × 108 × 82 mm |
| Number of conductors (without earthing) |
3 |
| Construction size |
4 modular spacing |
| Max. continuous voltage AC |
350V |
| Nominal discharge surge current (8/20) |
40kA |
| Nominal voltage AC |
230V |
| Voltage protection level L-N |
1.4kV |
| Signalling at the device |
Optical |
| Degree of protection (IP) |
IP20 |
| Voltage protection level N-PE |
1.5kV |
| Max. conductor cross section solid (solid, stranded) |
35mm2 |
| Max. conductor cross section flexible (fine-strand) |
25mm2 |
| Max. discharge surge current (8/20) |
40kA |
| Short-circuit breaking capacity (Isccr) |
25kA |
| Max. overcurrent protection device, parallel connection (fuse) |
125A |
| Max. overcurrent protection device, series connection (fuse) |
80A |
| Brand | |
| SKU | 725114 |
| EAN | 4001869340623 |
