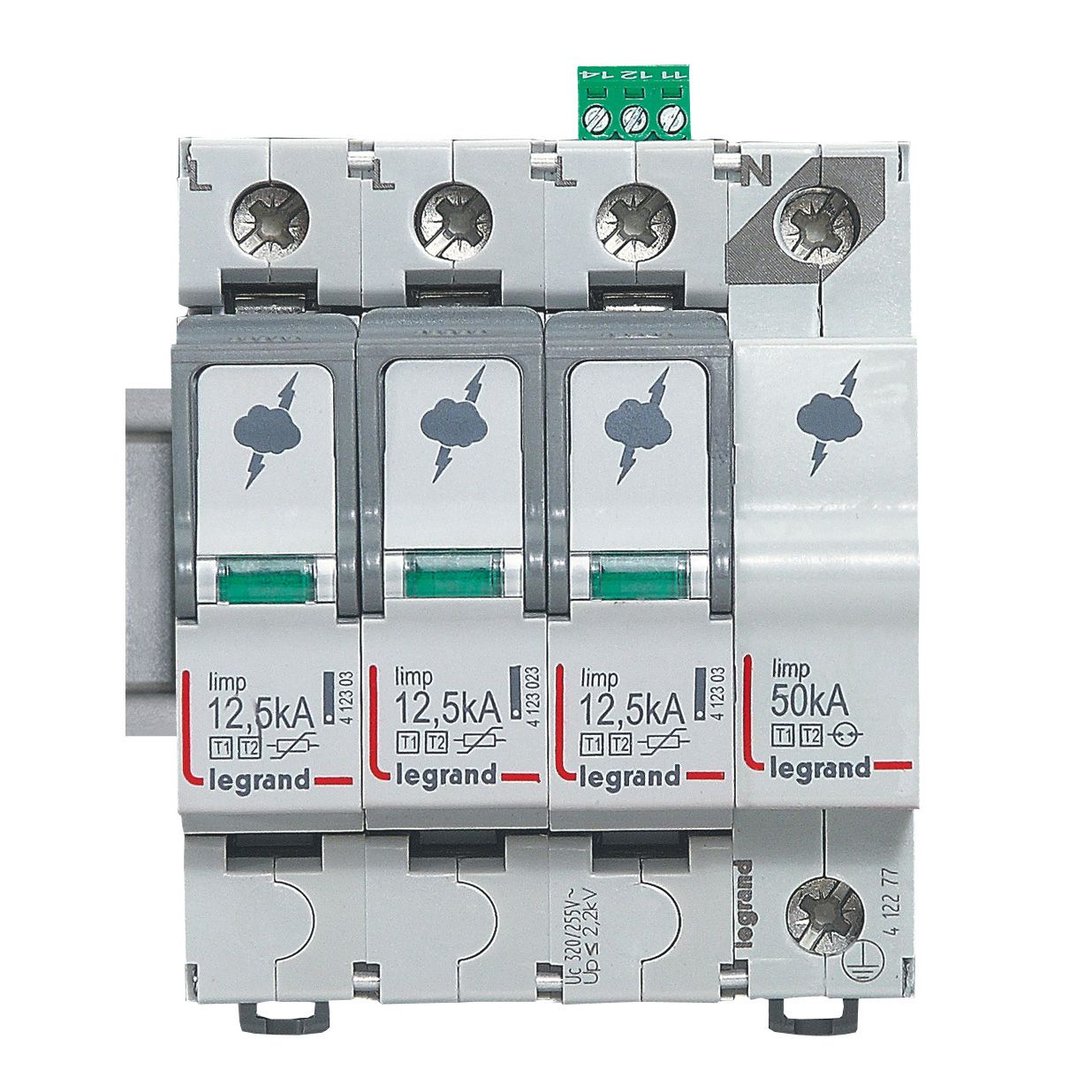

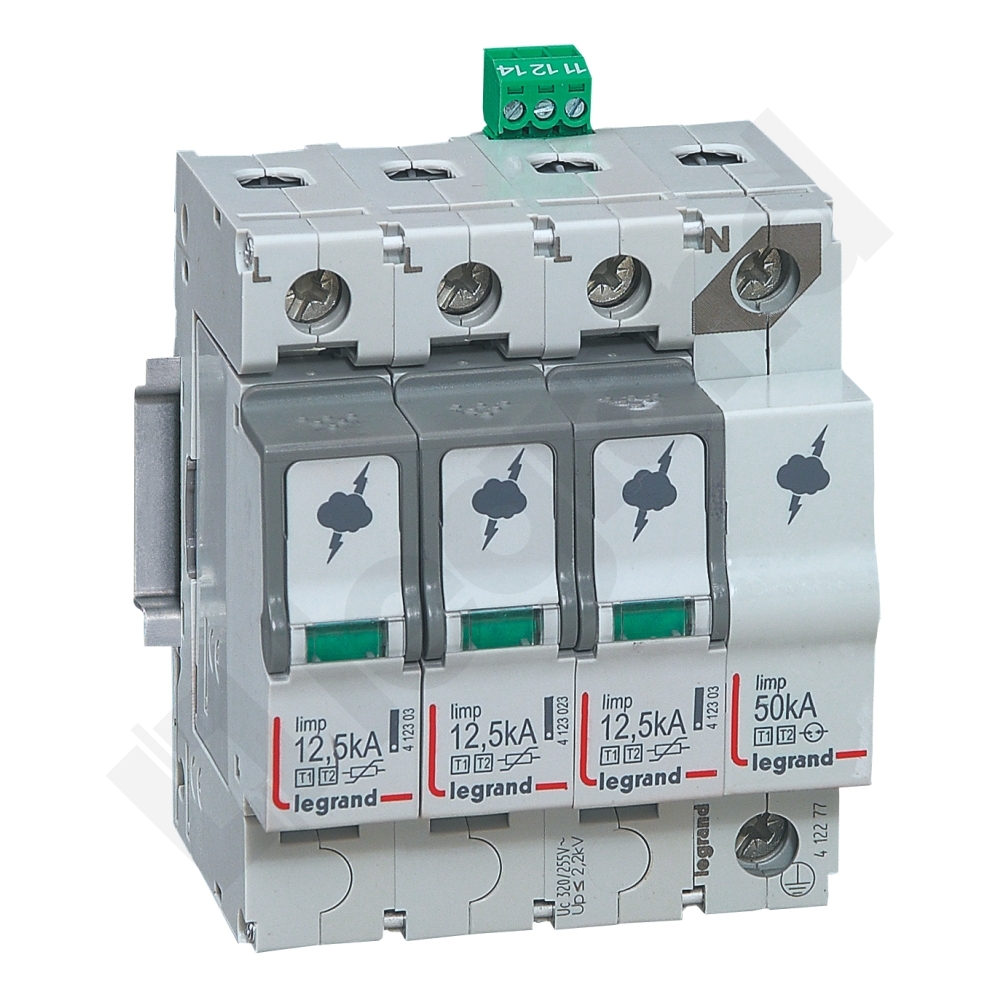

ON300 SURGE ARRESTER T1+T2 B+C 3P+N 4M 12.5/60KA + ALARM CONTACT TT, TNC, TNS
291,66 € VAT incl.
- VAT excl.
241,04 € VAT excl.
VAT incl. (21%)
Part No:
412277
Brand:
LEGRAND
2 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
OGRANICZNIK PRZEPIĘĆ T1+T2 12,5/60 3P+N
Additional information
| Weight | 0,55 kg |
|---|---|
| Dimensions | 100 × 75 × 85 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Number of conductors (without earthing) |
4 |
| Construction size |
4 modular spacing |
| Max. continuous voltage AC |
320V |
| Nominal discharge surge current (8/20) |
25kA |
| Nominal voltage AC |
400V |
| Voltage protection level L-N |
2.2kV |
| Signalling at the device |
Optical |
| Degree of protection (IP) |
IP20 |
| Voltage protection level N-PE |
1.5kV |
| Max. conductor cross section solid (solid, stranded) |
35mm2 |
| Max. conductor cross section flexible (fine-strand) |
25mm2 |
| Brand | |
| SKU | 619574 |
| EAN | 3414970517500 |
