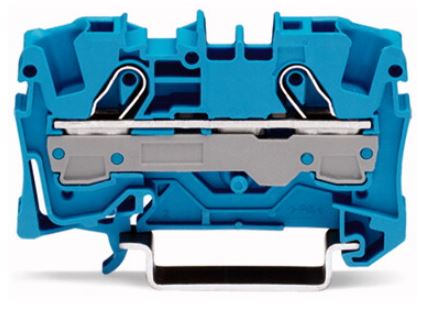

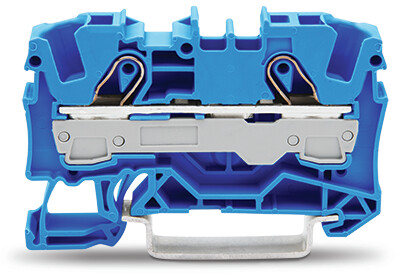

TOPJOBS 6.0 PASS-THROUGH CONNECTOR 2-WIRE BLUE

Name: TOPJOBS 6.0 PASS-THROUGH CONNECTOR 2-WIRE BLUE
Brand: WAGO
SKU: 079740
Availability: InStock

2,01 € VAT incl.

VAT incl. (21%)

Part No: 2006-1204

Brand: WAGO

207 in stock

Delivery time 3-5 working days.

For your home.

Fast support.

Top product brands.

Description

TOPJOBS złączka 2-przewodowa 6 mm2 niebieska

Additional information

Weight	0,01 kg

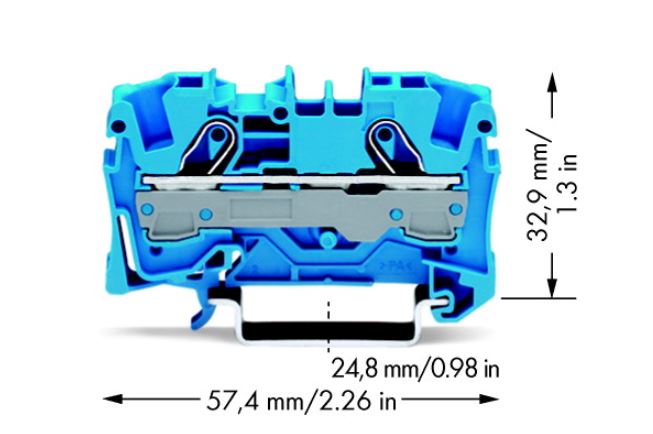

Dimensions	57 × 39 × 7 mm
Mounting method	DIN rail (top hat rail) 35 mm
Color	Blue
Rated voltage	800V
Operating temperature	105°C
Inflammability class of insulation material according to with UL94	V0
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	1mm2
Connectable conductor cross section fine-strand with cable end sleeve	1.5mm2
Connectable conductor cross section fine-strand without cable end sleeve	0.5mm2
Connectable conductor cross section multi-wired	0.5mm2
Material insulation body	Thermoplastic
Rated current In	41A
Brand	WAGO
SKU	079740
EAN	4017332999656
