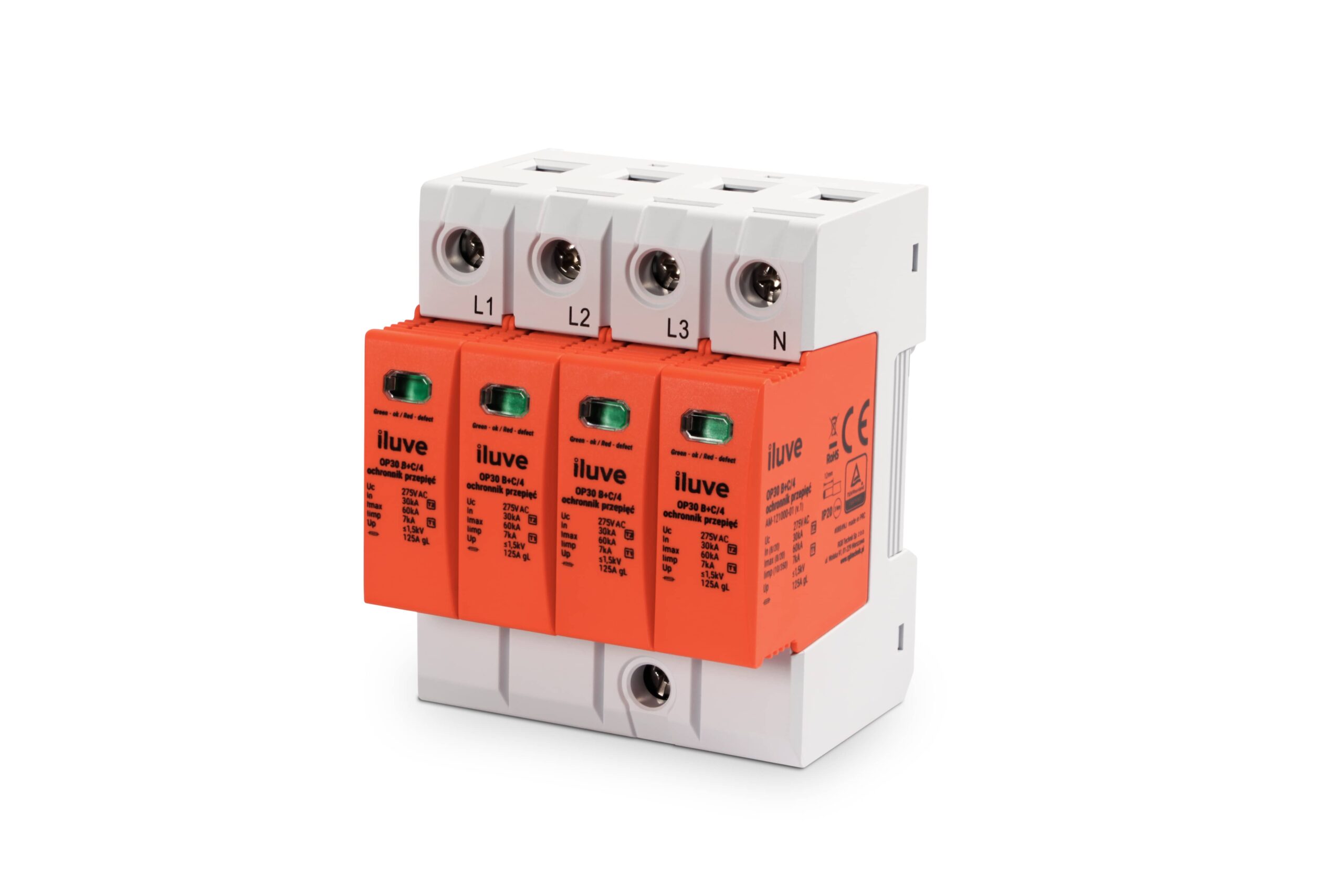

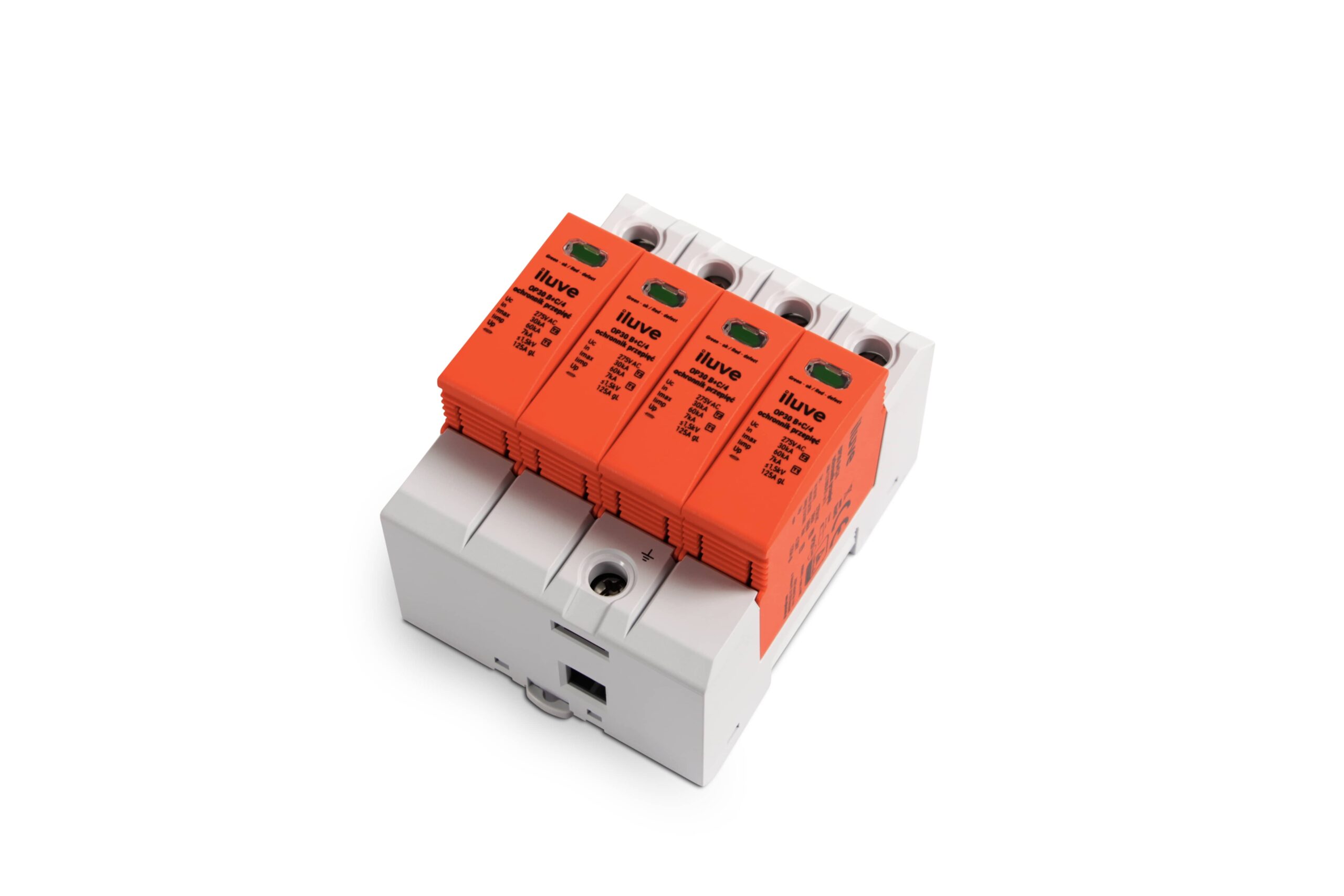

OP30 SURGE ARRESTER T1+T2 B+C 4P 4M 30/50KA 1.8KV
32,57 € VAT incl.
- VAT excl.
26,92 € VAT excl.
VAT incl. (21%)
Part No:
AM-121000-01
Brand:
ILUVE
1039 in stock
Delivery
Delivery time 3-5 working days.
50k products
For your home.
Support
Fast support.
Quality
Top product brands.
Description
Cechy
- Służy do ochrony instalacji zasilających NN
- Zabezpiecza większość odbiorników elektrycznych przed przepięciami komutacyjnymi i przepięciami zredukowanymi
- Zgodny z normą IEC 61643-11
- Kolor zielony – OK, kolor czerwony – należy wymienić wkładkę
Additional information
| Weight | 0,467 kg |
|---|---|
| Dimensions | 95 × 75 × 75 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Number of poles |
4 |
| Construction size |
4 modular spacing |
| Voltage protection level |
1.5kV |
| Max. continuous voltage AC |
275V |
| Nominal voltage AC |
230V |
| Nominal voltage DC |
0V |
| Test class |
Type 1 + 2 |
| Signalling at the device |
Optical |
| Max. continuous voltage DC |
0V |
| System configuration DC |
No |
| System configuration IT |
No |
| System configuration TN |
Yes |
| Brand | |
| SKU | 605742 |
| EAN | 5901780733650 |
